Infrasound Technology

Seismo Wave

  • The company SEISMO WAVE specializes in infrasound sensors for the research community and for civil and military security.

    A long-term partner of the Military Applications Division (DAM), the Environmental Assessment and Monitoring Department (DASE) of the French Alternative Energies and Atomic Energy Commission (CEA), Seismo Wave manufactures and markets high-precision infrasound sensors, also known as micro-barometers.

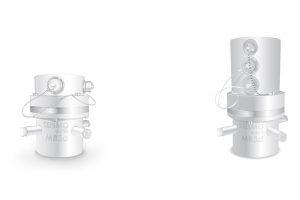

    Designed by the CEA, the MB3a (analog) and MB3d (digital) sensors enable the detection of extreme atmospheric events with frequencies included between 0.01Hz and 28Hz. Both models are characterized by their low self-noise (approx.10db under the low-noise model at 1Hz) and their remote calibration capability. Known as reliable and robust, the MB3 sensors are all in-lab calibrated on the Seismo Wave premises.

    Installed worldwide, Seismo Wave micro-barometers serve in many scientific observation and prevention applications:

    • Meteorology: study of atmospheric pressure, gravity waves, sudden stratospheric warnings, lighting…
    • Volcanology: to track eruptive activity, to understand eruption dynamics, to analyze volcanic ashes (early warning systems for the aviation)
    • Nuclear explosions, quarry blasts
    • Earthquakes
    • Tsunamis
    • Tornadoes
    • Meteors
    • Landslides, avalanches
    • Wind farm emissions
  • Seismo Wave assists its customers throughout their project, from the design of specific accessories to station maintenance.
    Located in France. Seismo Wave has its own laboratory of metrology, with an infrasound calibrator designed by CEA/DASE, to qualify sensors on the frequency bandwidth from 0.01Hz to 28Hz.
    In the R&D department, engineers work on the improvement of infrasound technologies and on the development of new products and accessories (cables, interconnection boxes, etc…).

    Seismo Wave and Enviroearth, its partner for the installation of stations, operate worldwilde for private and public organizations.
    With over 10 year’s expertise in installing infrasound stations. Enviroearth designs customized infrasound stations that are adapted to your constraints, and supplies all the required equipment: vaults, power, datatransmission, Wind Noise Reduction Systems (WNRS).

    PROPERTIES OF INFRASONIC WAVES

    Infrasound source or typeFrequency range (HZ)Max. observed amplitude (PA)Estimated max. detection range (KM)
    Atmospheric nuclear explosions0.002-20> 20> 20 000
    Underground nuclear explosions1-2011 000
    Mining explosions0.05-205> 5 000
    Bridges and other structures0.5-200.5< 100
    Launching of rockets and spacecraft0.01-2053 000
    Satellite and spacecraft re-entry0.01-201> 2 000
    Subsonic aircraft0.3-202< 100
    Supersonic aircraft0.3-20105 000
    Meteors0.01-20> 10> 20 0000
    Calving of icebergs and glaciers0.5-81200
    Volcanic eruptions0.002-20> 20> 20 000
    Convective storms0.01-0.10.5> 1 500
    Earthquakes0.005-104> 10 000
    Landslides, avalanches0.1-2011 000
    Mountain associated waves0.007-0.1510 000
    Lightning0.5-20250
    Tornadoes0.5-200.5300
    Tsunamis0.5-20.11 000
The company SEISMO WAVE

The company SEISMO WAVE specializes in infrasound sensors for the research community and for civil and military security.

A long-term partner of the Military Applications Division (DAM), the Environmental Assessment and Monitoring Department (DASE) of the French Alternative Energies and Atomic Energy Commission (CEA), Seismo Wave manufactures and markets high-precision infrasound sensors, also known as micro-barometers.

Applications

Designed by the CEA, the MB3a (analog) and MB3d (digital) sensors enable the detection of extreme atmospheric events with frequencies included between 0.01Hz and 28Hz. Both models are characterized by their low self-noise (approx.10db under the low-noise model at 1Hz) and their remote calibration capability. Known as reliable and robust, the MB3 sensors are all in-lab calibrated on the Seismo Wave premises.

Installed worldwide, Seismo Wave micro-barometers serve in many scientific observation and prevention applications:

  • Meteorology: study of atmospheric pressure, gravity waves, sudden stratospheric warnings, lighting…
  • Volcanology: to track eruptive activity, to understand eruption dynamics, to analyze volcanic ashes (early warning systems for the aviation)
  • Nuclear explosions, quarry blasts
  • Earthquakes
  • Tsunamis
  • Tornadoes
  • Meteors
  • Landslides, avalanches
  • Wind farm emissions
Customers and Partners

Seismo Wave assists its customers throughout their project, from the design of specific accessories to station maintenance.
Located in France. Seismo Wave has its own laboratory of metrology, with an infrasound calibrator designed by CEA/DASE, to qualify sensors on the frequency bandwidth from 0.01Hz to 28Hz.
In the R&D department, engineers work on the improvement of infrasound technologies and on the development of new products and accessories (cables, interconnection boxes, etc…).

Seismo Wave and Enviroearth, its partner for the installation of stations, operate worldwilde for private and public organizations.
With over 10 year’s expertise in installing infrasound stations. Enviroearth designs customized infrasound stations that are adapted to your constraints, and supplies all the required equipment: vaults, power, datatransmission, Wind Noise Reduction Systems (WNRS).

Porperties of infrasonic waves

PROPERTIES OF INFRASONIC WAVES

Infrasound source or typeFrequency range (HZ)Max. observed amplitude (PA)Estimated max. detection range (KM)
Atmospheric nuclear explosions0.002-20> 20> 20 000
Underground nuclear explosions1-2011 000
Mining explosions0.05-205> 5 000
Bridges and other structures0.5-200.5< 100
Launching of rockets and spacecraft0.01-2053 000
Satellite and spacecraft re-entry0.01-201> 2 000
Subsonic aircraft0.3-202< 100
Supersonic aircraft0.3-20105 000
Meteors0.01-20> 10> 20 0000
Calving of icebergs and glaciers0.5-81200
Volcanic eruptions0.002-20> 20> 20 000
Convective storms0.01-0.10.5> 1 500
Earthquakes0.005-104> 10 000
Landslides, avalanches0.1-2011 000
Mountain associated waves0.007-0.1510 000
Lightning0.5-20250
Tornadoes0.5-200.5300
Tsunamis0.5-20.11 000

Metrology

Our sensors can be delivered with individual certificates which include information about sensitivity of the pressure output, derivative pressure output and calibration output, in accordance with Seismo Wave internal procedures.

SENSOR SELF-NOISE
MEASUREMENT

Electric transfer function
from 0.01 to 28Hz

Acoustic transfer function
from 0.01 to 28Hz
